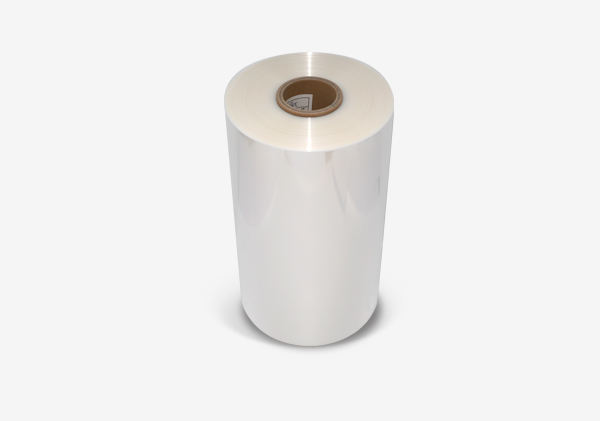

Polyolefin Shrink Film |
JT01 Polyolefin shrink film is a strong and high clarity biaxial oriented heat shrinkable film that has stable & balanced shrinkage and soft corner during packaging. With features of tough,cold resistant and soft, it can protect your products efficiently and doesn’t emit harmful gas during usage. It is an economic product which works easily on most shrink packaging machines.
shrink film 10mic the new thinnest biaxial oriented heat shrink film, it has better tensile strength, and better clarity. It have less haze when packing, also better oxygen transmission rate, can protect your goods efficiently. It works good on auto or semi-auto machine. Now it is widely used for packing milky tea, bowel noodles, lile box, chocolate and so on.
Available thickness
10micron, 12micron, 15micron, 19micron, 25micron and 30 micron. |
Material | PP/PE |
Application | 1. FOOD pack 2.Cosmetics 3.Medicine pack 4.furniture pack 5.Hardware pack Etc |
Origin | Zhejiang, China |
TEST ITEM |
UNIT |
ASTM TEST |
TYPICAL VALUES |
||||||||
THICKNESS |
|
|
10um |
12um |
15um |
19um |
25um |
30um |
38um |
||
TENSILE |
|||||||||||
Tensile Strength (MD) |
N/mm² |
D882 |
115 |
116 |
111 |
111 |
96 |
95 |
92 |
||
Tensile Strength (TD) |
110 |
111 |
106 |
105 |
91 |
90 |
97 |
||||
Elongation (MD) |
% |
115 |
116 |
121 |
126 |
131 |
134 |
138 |
|||
Elongation (TD) |
110 |
111 |
116 |
116 |
126 |
130 |
135 |
||||
TEAR |
|||||||||||
MD |
g |
D1922 |
7.6 |
10.6 |
14.6 |
17.6 |
23.6 |
25.4 |
28.5 |
||
TD |
7.5 |
10.1 |
13.6 |
16.1 |
23.1 |
25.1 |
28.1 |
||||
SEAL STRENGTH |
|||||||||||
MD/Hot Wire SealF |
N/mm |
F88 |
0.63 |
0.75 |
0.91 |
1.13 |
1.35 |
1.51 |
1.91 |
||
TD/HotWire Seal |
0.65 |
0.78 |
0.96 |
1.16 |
1.40 |
1.5 |
1.96 |
||||
COF(film to Film) |
|||||||||||
Dynamic |
|
D1894 |
0.23 |
0.33 |
0.32 |
0.32 |
0.35 |
0.35 |
0.36 |
||
Static |
|
0.23 |
0.34 |
0.33 |
0.34 |
0.36 |
0.36 |
0.37 |
|||
OPTICS |
|||||||||||
Haze |
|
D1003 |
2.0 |
2.3 |
2.7 |
3.3 |
4.0 |
4.2 |
4.7 |
||
Clarity |
|
D1746 |
98.9 |
98.6 |
98.1 |
97.1 |
95.1 |
93.1 |
98.1 |
||
Gloss @45Deg |
|
D2457 |
85.4 |
85.6 |
87.1 |
83.6 |
81.6 |
80.2 |
87.1 |
||
BARRIER |
|||||||||||
Oxygen Transmission Rate |
cc/m²/day |
D3985 |
14200 |
11300 |
10800 |
7200 |
5400 |
4800 |
4200 |
||
Water Vapor Transmission Rate |
gm/m²/day |
F1249 |
44.6 |
45.6 |
38.6 |
26.6 |
22.6 |
20.6 |
20 |
||
SHRINKAGE PROPERTIES |
MD |
TD |
MD |
TD |
MD |
TD |
MD |
TD |
|||
Free Shrinkage |
100℃ |
% |
D2732 |
22 |
32 |
23 |
32 |
21 |
29 |
27 |
25 |
110℃ |
38 |
46 |
39 |
46 |
35 |
46 |
46 |
46 |
|||
120℃ |
57 |
64 |
59 |
64 |
58 |
61 |
61 |
60 |
|||
130℃ |
66 |
68 |
66 |
68 |
65 |
66 |
66 |
65 |
|||
|
|||||||||||
Shrink Tension |
100℃ |
Mpa |
D2838 |
1.88 |
2.75 |
1.90 |
2.75 |
1.95 |
2.65 |
2.55 |
2.45 |
110℃ |
2.44 |
3.60 |
2.80 |
3.60 |
2.95 |
3.75 |
3.65 |
3.55 |
|||
120℃ |
2.50 |
3.75 |
2.90 |
3.75 |
3.00 |
3.70 |
3.60 |
3.50 |
|||
130℃ |
2.40 |
3.25 |
2.70 |
3.25 |
2.80 |
3.15 |
3.15 |
3.05 |
Note: This infor mation represents our best judgment on the work done,but the company assumes no liability whatsoever in connection with the use of infomation or findings contained herein.
Polyolefin shrink film is a popular type of plastic film widely used across various industries, including food, medical, industrial, and consumer goods packaging. Derived from synthetic polymers primarily made from petroleum or natural gas, polyolefin films offer excellent strength, durability, and clarity. The two main polyolefins used in shrink films are polyethylene and polypropylene, both of which contribute to the film's remarkable performance.
In packaging, especially in the food sector, polyolefin shrink film plays a critical role in protecting products from external elements like moisture, oxygen, light, and physical damage. Its ability to shrink tightly around items when exposed to heat provides a secure and attractive protective barrier, ensuring that products remain in optimal condition during storage, transport, and display.
Product Type: Biaxially Stretched Heat Shrinkable Film
Product structure: new and thinnest (compared to other membranes in the description)
Available thicknesses: 10 micron, 12 micron, 15 micron, 19 micron, 25 micron and 30 micron
Transparency: has better clarity
Glossiness: good gloss
Single Roll Paper: Ideal for manual or small-scale applications.
Tubular Roll: Suitable for automated packaging systems, providing continuous wrapping solutions.
Customizable Colors: Choose from a wide range of colors to match your brand or product requirements.
Thickness Range: Available in a thickness range of 10 to 38 microns, allowing for flexibility in protection and film strength depending on the application.
Food packaging: It is often used to package milk tea, clear soup noodles, etc., which can effectively maintain the freshness and taste of food and extend the shelf life of food.
High-end product packaging: For products that require exquisite presentation, such as gift boxes and chocolates, jtpackage polyolefin shrink film can significantly enhance the visual effect and appeal of the product with its high definition and low haze properties.
Cosmetic packaging: In the cosmetics industry, polyolefin (POF) shrink film are used to package various beauty products, which not only protects the products from external contamination, but also demonstrates the sophistication and elegance of the products.
Pharmaceutical packaging: It is also suitable for the packaging of pharmaceuticals to ensure the sealing and safety of pharmaceuticals while facilitating identification and storage.
Furniture and Hardware Packaging: In the furniture and hardware industries, our products are used to protect items from scratches and damage while facilitating handling and storage.
Polyolefin shrink film has strong, high-definition characteristics and can shrink stably and evenly, ensuring that packaged products are not damaged during transportation and storage. The soft corner design prevents scratches or abrasions on the product during packaging.
This material will not release harmful gases during use, ensuring the safety and environmental protection of the product.
The characteristics of high definition and low haze make the packaged goods more beautiful, which can improve the display effect and attractiveness of the goods.
It is suitable for packaging of a variety of commodities, such as milk tea, clear soup noodles, gift boxes, chocolates, etc., which can enhance consumers' desire to buy.
Polyolefin shrink film is an affordable packaging material that can reduce packaging costs, thereby saving costs for businesses.
The cost of polyolefin (POF) shrink film is determined by several factors, including:
Material Type: The type of polymer used, such as high-density polyethylene (HDPE), low-density polyethylene (LDPE), or polypropylene (PP), influences the price based on their properties and uses.
Clarity Requirements: Films with higher clarity or enhanced transparency, often needed for product visibility, typically come at a higher cost due to additional processing or additives.
Size and Format: Larger rolls or custom-sized packaging formats often require specialized production equipment, which can drive up costs.
Market Conditions: Fluctuations in raw material prices and energy costs can lead to changes in the price of POF shrink film, so businesses must be mindful of broader economic trends.
The process of shrink wrapping with polyolefin (POF) shrink film is efficient, adaptable, and suitable for both manual and automated packaging systems. It ensures a clean, professional finish while protecting the product from dust, moisture, and tampering.
a. Product Placement
The product is first placed between two layers of Polyolefin shrink film, which is usually in centerfold form. Alternatively, a single-wound roll may be used in certain machinery.
b. Sealing
Once the product is wrapped, the film is sealed around the item using a heat sealer. The seal must be strong and clean to ensure proper shrinking and to avoid film breakage during the heating process.
c. Heat Application
The sealed product passes through a shrink tunnel or is exposed to a heat gun. The applied heat causes the Polyolefin film to shrink tightly around the item, conforming to its shape. Temperatures typically range from 120°C to 160°C, depending on the film grade.
d. Cooling and Final Appearance
As the film cools, it contracts fully to produce a snug, glossy, and tamper-evident package. The clarity of Polyolefin film ensures excellent product visibility and shelf appeal.
Benefits of This Process:
Compatible with high-speed machinery for large-scale packaging
Minimal waste generation
Uniform shrink results even for irregular shapes
Safe to use around food and sensitive items
Polyolefin shrink film is crafted from a combination of polyethylene (PE) and polypropylene (PP), two of the most commonly used thermoplastics. This unique blend delivers the best features of both materials, making Polyolefin a highly versatile and durable shrink film solution.
Core Properties:
a. Strength and Flexibility
Thanks to its molecular structure, polyolefin shrink film exhibits high tensile strength and flexibility. It resists tearing and puncturing, even when wrapping heavy or oddly shaped items.
b. Optical Clarity
Polyolefin film provides excellent transparency and a glossy finish. This is particularly valuable for retail products where visual presentation directly impacts consumer behavior.
c. Seal Strength
The film creates strong, consistent seals using standard heat-sealing equipment. Seals remain intact even during shipping and handling.
d. Shrink Ratio
Most Polyolefin shrink films offer a shrink ratio of 40–60%, which means the film can shrink uniformly in multiple directions, tightly wrapping around a variety of product shapes and sizes.
e. Food Safety Compliance
Many Polyolefin shrink films meet international food safety standards, making them suitable for direct contact with edible items like bakery goods, chocolates, and meats.
f. Temperature Tolerance
POF maintains its integrity in a wide range of temperatures. It does not become brittle in cold storage and does not emit toxic fumes during the shrinking process, unlike PVC films.
g. Environmental Responsibility
Most polyolefin shrink films are 100% recyclable. Some newer versions are even made with bio-based or compostable components, helping businesses reduce their environmental impact.
To understand the value of polyolefin shrink film, it's helpful to compare it with other commonly used shrink wrap materials—PVC and Polyethylene (PE)
Feature | Polyolefin (POF) Shrink Film | PVC Shrink Film | Polyethylene (PE) Shrink Film |
---|---|---|---|
Clarity | Excellent, glossy and transparent | Good, but yellows over time | Moderate, often cloudy |
Toxic Fume Emission | None | Emits harmful chlorine fumes when heated | Low |
Food Safety | Safe for direct food contact | Not food-safe | Depends on grade |
Flexibility | High, adapts to different shapes | Moderate, becomes brittle in cold | High |
Seal Strength | Strong and consistent | Moderate | Lower compared to POF |
Shrink Rate | 40–60% multidirectional | Up to 40% | Up to 70%, usually unidirectional |
Cost | Moderate | Low | Varies, typically used in bulk bundles |
Recyclability | Widely recyclable | Less eco-friendly | Generally recyclable |
Summary:
Polyolefin Shrink Film offers a balanced combination of clarity, strength, and safety. It's versatile enough for use across multiple sectors.
PVC Shrink Film is cost-effective but not ideal for food and can release hazardous gases.
PE Shrink Film is great for bulk wrapping but lacks the aesthetic appeal and clarity that POF provides.
Proper storage and handling are essential to maintain the quality and performance of Polyolefin shrink film. The following guidelines can help ensure that your packaging materials remain in optimal condition until they're ready for use:
a. Storage Conditions
Polyolefin shrink films should be stored in a cool, dry environment, away from direct sunlight and extreme temperatures. Excessive heat or exposure to UV rays can degrade the film's properties, making it more prone to tearing or uneven shrinkage.
Ideal Storage: Store at room temperature (around 18–22°C or 65–72°F) and keep the film rolls wrapped in protective plastic to prevent dust and dirt accumulation.
Avoid Moisture: Moisture can compromise the film's sealing properties. Ensure that the storage area is well-ventilated and free from humidity.
b. Proper Handling During Transportation
When transporting Polyolefin shrink film, handle the rolls with care. Dropping or rolling the material can cause wrinkles or creases, which could affect shrink performance.
Tip: Use pallets or shelving systems to keep the film rolls upright and secure. Avoid stacking too many rolls on top of each other to prevent compression and deformation.
c. Pre-Use Inspection
Before using Polyolefin shrink film, check for any visible signs of damage or defects. These could include creases, tears, or discoloration, all of which could impact the final packaging quality.
Tip: Perform a quick visual inspection of each roll before loading it into your machine. If any issues are found, replace the roll to ensure consistency and quality in your packaging process.
d. Handling with Machines
Ensure that your shrink packaging machine is compatible with the film you are using. Use the appropriate film gauges and adjust machine settings accordingly to avoid excessive heat or pressure that may cause film breakage.
Tip: Regularly clean your equipment, especially the sealing and shrinking units, to prevent residue buildup that could interfere with the film's performance.
Q: How durable is polyolefin?
A: The durability of polyolefin is excellent. It has the characteristics of low relative density, chemical resistance, water resistance, good mechanical strength and electrical insulation. At the same time, polyolefin has high hardness and excellent wear resistance and impact resistance, which makes polyolefin an ideal material for manufacturing lightweight and durable products.
Q: Is polyolefin food grade?
A: Polyolefin can be used for food-grade packaging materials, but it needs to meet certain production standards and safety requirements. Polyolefin is a plastic material made by polymerizing monomers such as propylene or ethylene, and has excellent physical and chemical properties, such as heat resistance, cold resistance, and chemical corrosion resistance. Internationally, the relevant production standards mainly include FDA, EU Food Safety Authority and China GB. These standards specify the physical, chemical, biological, toxicological and other requirements that polyolefin materials should meet when used in food contact, such as polyolefin materials should not contain harmful substances, will not affect food, and will not destroy the nutritional components of food. Therefore, if the polyolefin material meets these standards, it is food grade.
Q: Will polyolefin shrink during storage?
A: Polyolefin may shrink during storage, which mainly depends on its specific type and storage conditions. For example, some commercial polyolefin separators may show severe thermal shrinkage and low permeability due to inherent disadvantages such as low melting temperature and weak surface energy. However, by modifying the raw materials or blending, the shrinkage can be reduced to ensure the safety of the product. Therefore, when storing polyolefin, attention should be paid to its type and storage conditions to avoid unnecessary shrinkage.
Q: What is single roll polyolefin?
A: Single roll polyolefin generally refers to polyolefin materials provided in roll form. This material is made into a continuous film or sheet during the manufacturing process and then rolled up for easy storage and transportation. Single roll polyolefin can have various thicknesses and widths to meet different application requirements. It is often used in packaging, construction, agriculture and other fields as a protective, isolation or decorative material.
Q: How to choose the shrink wrap roll size?
A: When choosing the size of shrink wrap roll, you need to consider the following factors:
Size of the item being packaged: First, measure the length, width, and height of the item being packaged to ensure that the selected shrink wrap roll can completely cover the item and form a good protection.
Shrinkage ratio: Different shrink wrap materials have different shrinkage ratios. When choosing the size, you need to take this into account to ensure that the packaged items can achieve the desired tightness and appearance.
Type of packaging machine: If you use an automatic or semi-automatic shrink wrap machine, you need to make sure that the selected packaging roll size is compatible with the machine.
Economy: When choosing the size, you also need to consider the cost factor. A packaging roll that is too large may waste material, while a packaging roll that is too small may require frequent replacement, increasing labor costs.
Production and development of various special shrink films and wrapping films to meet the different needs of customers
How can polyolefin shrink film manufacturers improve the transparency and gloss of products by adjusting the production process?
In the polyolefin shrink film manufacturing industry, enhancing transparency and gloss is both a technical challenge and a crucial competitive edge. As a company committed to producing high-quality products, we understand the importance of these factors. To stay ahead in the market, we continuously refine our product line through precise adjustments and innovative processes, ensuring that we meet our customers' demands for both aesthetic appeal and superior performance.
Starting from the source, our company uses all imported high-quality raw materials, which is the cornerstone for improving product transparency and gloss. Imported raw materials tend to have a more stable molecular structure and fewer impurities, which is essential for the production of highly transparent and glossy POF shrink film. We strictly screen suppliers to ensure that each batch of raw materials meets high international standards, such as ISO, BRC and other certification requirements, which not only ensures the purity of the raw materials, but also provides a solid foundation for subsequent processing.
Biaxial stretching is the core step in the production of polyolefin (POF) shrink film, which directly affects the physical properties and appearance quality of the product. Our company has conducted in-depth research and optimization on this link:
Precise Temperature Control: During the biaxial stretching process, maintaining accurate control over heating and cooling temperatures is crucial. If the temperature is too high or too low, it can result in uneven molecular chain alignment, negatively impacting the film's transparency and gloss. To address this, we utilize an advanced temperature control system that ensures precise temperature adjustments within ±1°C. This level of accuracy optimizes the molecular chain orientation, leading to improved transparency and gloss in the final product.
Stretch Ratio and Speed Adjustment: The stretch ratio and speed are critical factors that influence the performance of the film. Through extensive testing and data analysis, we have identified the optimal combination of stretch ratio and speed that not only enhances the film’s strength but also significantly boosts its transparency and gloss. This fine-tuning is especially vital for ultra-thin products, such as 10-micron shrink film, where precise control is essential to achieve the desired quality.
Adding an appropriate amount of additives such as antioxidants and UV inhibitors to the raw materials can effectively improve the weather resistance and stability of POF shrink film, and also have a positive effect on its transparency and gloss. Our company has a professional R&D team, and through scientific proportions, it ensures that the additives can play a role without negatively affecting the transparency of the film. In addition, we also pay special attention to the environmental protection of additives, ensuring that all products meet food safety standards such as FDA, providing customers with a more secure choice.
Surface Treatment Technology plays a key role in enhancing the gloss of shrink film. By utilizing advanced corona treatment or plasma treatment technologies, we can micro-modify the surface of the film, increasing its surface energy and creating a smoother finish. This results in a more uniform light reflection, significantly improving the film’s gloss. This process is especially applied in the production of our JT01 polyolefin (POF) shrink film (10 microns), giving it a highly transparent and glossy appearance with enhanced visual appeal.
We have implemented a rigorous quality control system, monitoring every stage from raw material entry to final product delivery. Our production process is equipped with advanced testing tools, such as Fourier Transform Infrared Spectrometer (FTIR) and Scanning Electron Microscope (SEM), to continuously check product quality in real-time. We also gather customer feedback to improve and upgrade our products, ensuring our products stay ahead of industry trends.
Strong Production Capacity and Stable Supply Chain are key factors that support our ability to consistently provide high-quality shrink films. We maintain ample raw material reserves and operate efficient production lines, enabling us to respond quickly to market demands while stabilizing raw material prices. Additionally, our strict supplier management ensures consistent raw material quality, providing a reliable foundation for the continued enhancement of product transparency and gloss.
Through raw material selection, process optimization, scientific ratio of additives, surface treatment technology and strict quality control, Jtpackage has successfully improved the transparency and glossiness of POF shrink film, especially in JT01 polyolefin shrink film 10mic and other products. These efforts not only reflect our pursuit of technological innovation, but also our deep understanding and active response to customer needs.
